The resulting split-face finish is well suited to decorative wall blocks, retaining wall systems, boundary walls and landscape construction. Depending on the product design and surface requirements, the textured blocks can often be installed without additional decorative surface treatment, simplifying the finishing process.
For concrete block manufacturers, a concrete block splitting machine provides a practical way to diversify product offerings beyond conventional smooth-faced blocks. It enables production for projects that call for a natural stone aesthetic, including villa exteriors, garden walls, retaining structures and other architectural landscaping applications.
| Maximum Splitting Pressure | 120 T |
| Maximum Splitting Width | 1200 mm |
| Maximum Splitting Height | 350 mm |
| Electric Power | 11 kW |
| Standard Hydraulic Pressure | 300 bar |
| Machine Weight | 3700 kg |
| Overall Dimensions (L × W × H) | 1038 × 2180 × 3832 mm |

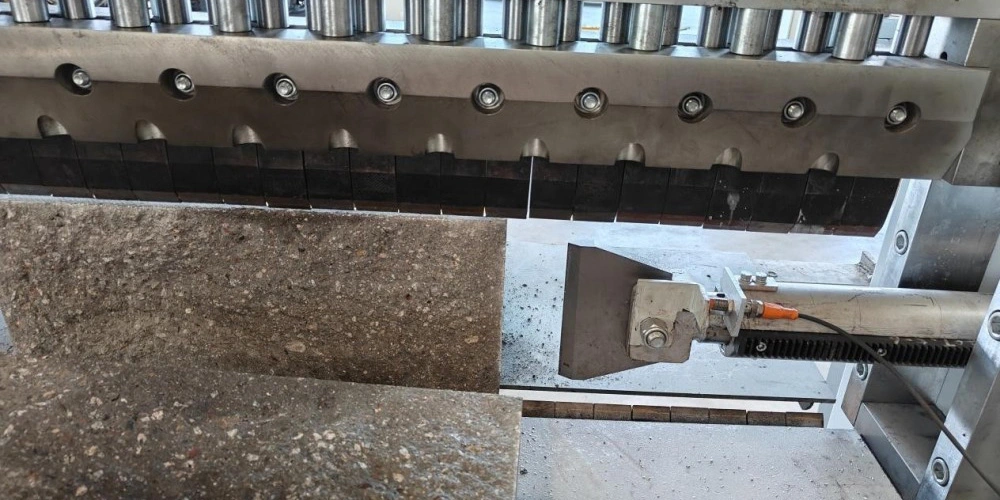

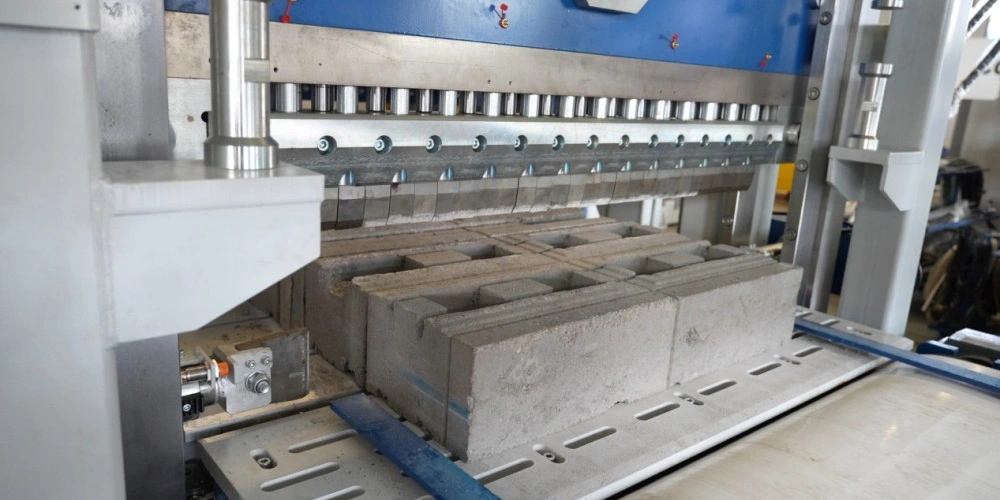

The machine applies controlled splitting force to concrete products to create irregular, three-dimensional surface textures. This process produces a rugged, natural stone-like finish, adding visual character to decorative concrete blocks and architectural wall products.
Designed for processing decorative concrete blocks and retaining wall blocks, the machine helps manufacturers expand beyond conventional smooth-faced products. The resulting split-face finish creates additional options for architectural facades, boundary walls, retaining structures and landscaping projects.
With a maximum splitting force of 120 tons, a maximum splitting width of 1,200 mm and a maximum splitting height of 350 mm, the machine accommodates a range of concrete product dimensions. Its processing capacity allows manufacturers to evaluate different product formats within the specified working limits. Actual suitability depends on block dimensions, concrete properties and tooling configuration.

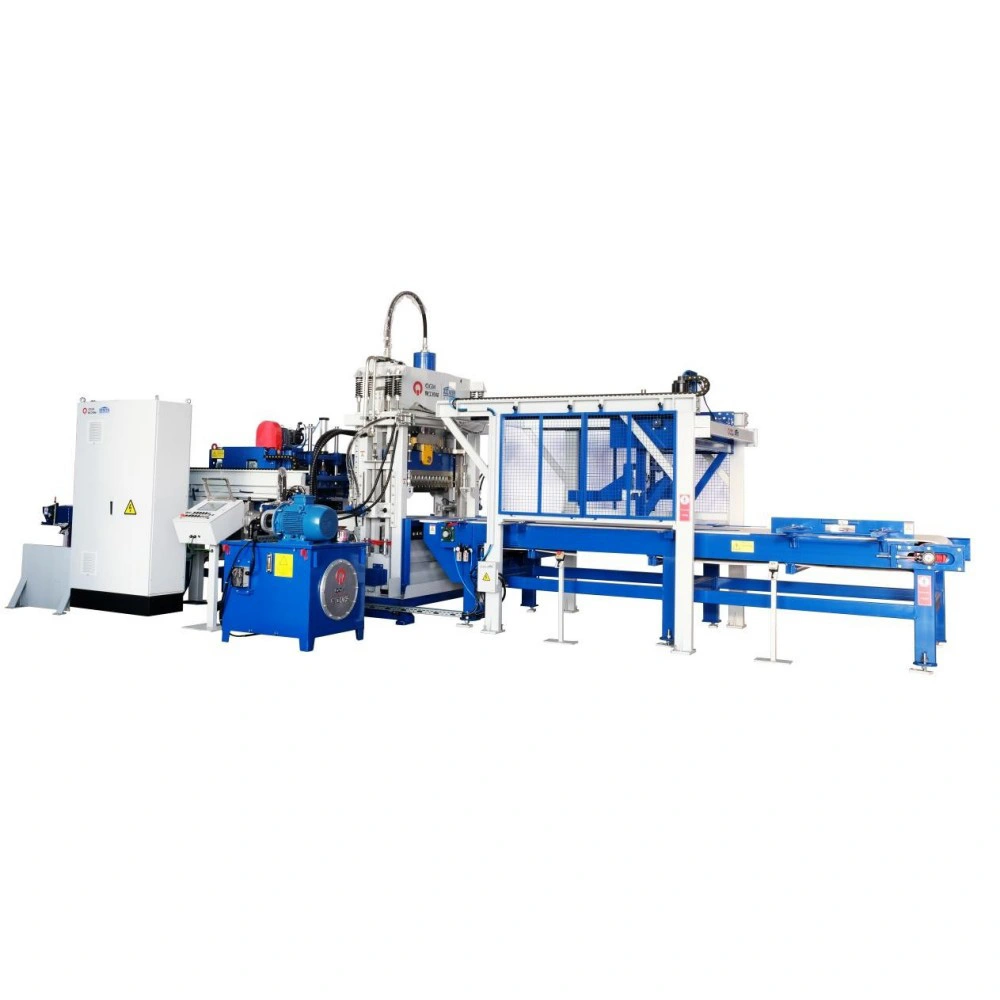

Equipped with powered infeed and outfeed conveyor systems featuring steel tracks and drive mechanisms, the machine supports the movement of concrete blocks through the splitting process. The integrated conveying arrangement helps reduce manual handling and maintain a more continuous workflow between loading, surface processing and product discharge.
